Advanced Rasterizers for Hybrid IP/SDI, 4K/UHD, HDR/WCG Generation, Analysis & Monitoring

Rapid fault diagnostics, compliance monitoring and product development

The Qx brings together all the advanced Test & Measurement tools required for transitioning to the next generation of video formats. Designed for HD/3G/6G/12-SDI and IP ST 2110/2022-7/2022-6 environments, the instrument set includes tools for rapid fault diagnosis, compliance monitoring and product development.

The Qx rasterizer offers media analysis for broadcast operator HD-SDI environments, with picture view, waveform analyzer, vectorscope, 32 channel audio metering and ANC status as standard.



Out of the box, the Qx offers media analysis for broadcast operator HD/3G environments, with a flexible user-defined instrument layout displaying up to 16 simultaneous windows, and the ability to rapidly change between bespoke layouts for different operational tasks with user presets.

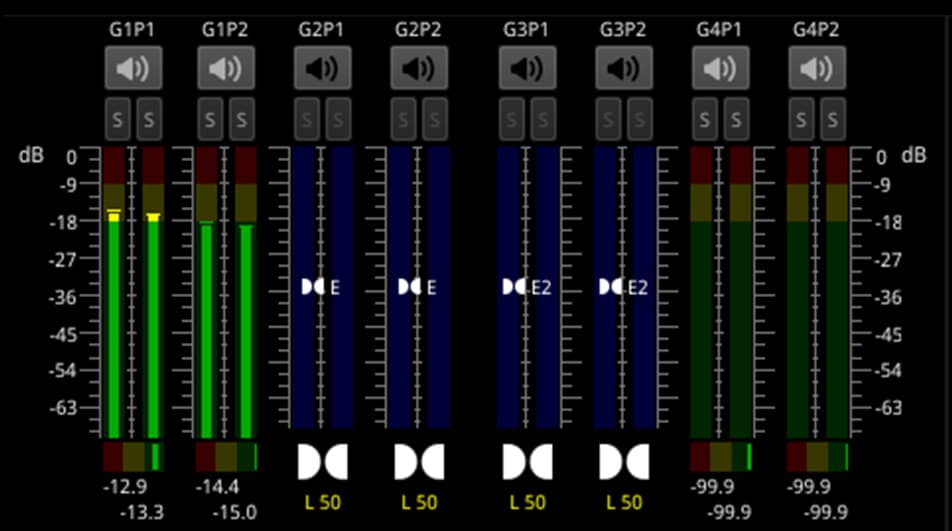

Picture view, waveform, vectorscope, 32 channel audio metering, detection of Dolby formats, ANC status and payload, on screen display of OP47 and CEA-608 in 708 closed captions and Ancillary Time Code (ATC), and advanced control and logging are all provided as standard.


The Qx offers a 12G/6G/3G/HD-SDI physical layer analysis option, including RTE™ (Real-Time Eye) technology to instantly highlight any SMPTE compliance issues including eye amplitude, transition times and overshoot. A suite of tools are available for users evaluating SDI interfaces.


The Qx’s ST 2110 core IP toolset provides an operator with 2110 confidence status monitoring in an intuitive and accessible manner. The toolset supports simultaneous decap of 1 video, 2 audio and 1 ANC Data flow supported SMPTE protocols include ST 2059 (PTP), ST 2110-20, -30, -31 and -40. ST 2022-7 seamless protection (SIPS) is provided for all four flows over two media network interfaces using industry standard SFPs.


Advanced Qx ST 2110 measurement tools include the provision of up to four simultaneous dual Packet Interval Timing measurement windows, detailed data reporting of flow packet, clock rates and PTP timing relationship, as well as IP Receive statistics that includes the measurements of the ST 2110-21 Network Compatibility model (Cinst) and Virtual Receiver Buffer Model (VRX).


The Qx’s advanced HDR toolset includes a signal generator, CIE chart, Luma false color heat map/highlighting, waveform monitor and vectorscope. All the main live production SDR/HDR formats are supported: SDR BT.709, BT.2020, plus HDR BT.2100 HLG, PQ and Sony S-Log3 and SR Live. An extensive set of test patterns include BT.2111 HDR color bars for HLG, PQ and SR Live as well as SDR 709 patterns.


Generate and analyze a set of SDI/IP formats. Moving test patterns offer up to 32 channels of embedded audio per link or subfield (up to 128 channels on 12G interfaces). The toolset provides  core full screen SDI Pathological SDI stress patterns as well as allowing the user to define a combination of SDI stress and conventional generator patterns up to full frame.


A sophisticated engineering grade analysis toolset provides easily accessible visualization of the data on an SDI interface and associated ANC packets. A deep SDI data inspection offers full freedom to inspect Active Picture, VANC and HANC. API controls to read back Active Picture Data under automation control are also included.


The Qx interface employs VNC technology to deliver 16 simultaneous instrument windows over a remote network . Multiple display layouts can be saved as presets. This allows users to save bespoke layouts for different operational tasks; useful for rapidly changing between different screen layouts eg. Audio, HDR or IP focus.


Standard Toolset

I/O and Reference Configuration

12G-SDI Physical Layer Analysis

[Optional Toolset]

Audio and Video Generation

[Optional Toolset]

SDI-Stress Testing

[Optional Toolset]

ST 2110 and ST 2022-6 Monitoring

[Optional Toolset]

IP Network Traffic Measurement

[Optional Toolset]

Packet Interval Profile Generator

[Optional Toolset]

High Dynamic Range (HDR) visualization & analysis

[Optional Toolset]

Data View Analyzer with ANC Inspector

[Optional Toolset]


Formats Supported Qx 12G/10G
IP SMPTE 2110/2022-7 O
IP SMPTE 2022-6 O
3G/1.5G-SDI HD Formats
12G/6G/3G/1.5G-SDI UHD Formats O
SDI Eye and Jitter Physical Layer Analysis FO
UHD over 25G IP
Software Options Supported
Audio/Video Generator (SDI, ST 2022-6, ST 2110) O
Eye and Jitter Toolset O
UHD/4K Upgrade SDI Option
SDI-STRESS Testing Toolset O
Data View Analyzer with ANC Inspector O
HDR/WCG Support O
IP ST 2022-6 Decap, ST 2110-20/30/31/40 Decap with ST 2022-7 and PTP O
IP Network Traffic Measurement Toolset (ST 2110) O
IP Network Traffic Generation Tooslet (ST 2022-6) O
Video Inputs/Outputs
4 x SDI inputs, HD/3G, 75 Ohm terminated BNC
2 x SFP+ MSA/NON-MSA cages (supports 12Gbps copper or fiber SDI interfaces)
4 x SDI outputs, HD/3G, 75 Ohm BNC
Support for 6G/12G SDI I/O O
RTE™ Real-Time Eye input (12G/6G/3G/HD-SDI) x 1 (SDI input A) BNC FO
Ethernet IP inputs/outputs (accepts generic SFPs)
2 x SFP+ 10G Cages (also supports MSA/NON-MSA 12Gbps copper or fiber SDI SFPs)
2 x SFP28 10/25G cages

● Standard
O Optional
FO Factory Option

Audio Inputs/Outputs Qx 12G/10G
4 x 75 Ohm AES selectable I/O (26 pin high density ‘D’ Type socket)
1 x Stereo analog audio output (26 pin high density ‘D’ Type socket)
8 channel 48kHz PCM audio on HDMI and SDI Instrument output
User Interface
HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A HDMI 1.4
SDI 3Gbit SDR/HDR instrument out, 1920 x 1080, 4:2:2 YCbCr BNC
ST 2110-20 SDR/HDR, ST 2110-30 instrument out, 1920 x 1080, 4:2:2 YCbCr O
2 x 75 Ohm BNC high impedance looping reference input, tri-level or B&B with cross lock
1 x 75 Ohm Micro-BNC terminating ref input, Tri/B&B with cross lock
Networking & Control
10/100/1000 BASE-T
8 x bi-directional GPI (26 pin high density ‘D’ Type socket)
Internal Beeper
Form factor
Size/Weight 253 x 44 x 211 mm, 1.9kg
Power consumption 50W typical, 70W max
4 Pin XLR power connector 12V nominal (10V-18V)
AC Power adapter 90-264VAC, 120W
Warranty (1 year)
Extended Warranty (3 – 5 years) O



Qx Chassis (includes PHQXO-SDI-STND)
PHQX01-3G Qx 1U ½ rack HD/2K SDI Rasterizer, Analyser only
PHQX01E-3G Qx 1U ½ rack HD/2K SDI Rasterizer with Eye & Jitter, Analyser only
PHQXM-01E Qx 01E Eye mezzanine upgrade (PHQX01-3G or PHQX01-12G chassis)
PHQX2QXL Requires PHQXO-IP-STND. Qx to QxL upgrade includes PHQXO-IP-25G license. Note: 25G Ethernet SFP28 modules are not included. (Availble until end March 2021)
Qx SDI Software Options
PHQXO-UHD UHD/4K upgrade for PHQX01-3G or PHQX01E-3G
PHQXO-SDI-STRESS Advanced SDI Stress Testing Toolset (requires PHQX01E-12G and PHQXO-GEN)
Qx SDI/IP Software Options
PHQXO-GEN Audio/Video Generator (SDI, ST 2022-6)
PHQXO-DATA Data View Analyzer with ANC inspector
(Included in new Qx purchases)
PHQXO-HDR HDR/WCG support, CIE 1931 chart, HDR Heatmap


Qx IP Options
PHQXO-IP-STND IP license for ST 2022-6 Encap and Decap, ST 2110 Decap with ST 2022-7 and PTP
PHQXO-IP-MEAS IP Network Traffic Measurement Toolset (requires PHQXO-IP-STND)
PHQXO-IP-NGT ST 2022-6 Packet Interval Profile Generator (requires PHQXO-IP-STND, PHQXO-GEN)
PHSFP-10GE-SR 10GBASE-SR Ethernet short range SFP+ 850nm, 300m, multi-mode transceiver
PHSFP-10GE-LR 10GBASE-LR Ethernet long range SFP+ 1310nm, 10km, single mode transceiver
Qx Fitting Kits
PHQXC-1 12G-SDI Test Cable 1m
PHQXK1 Qx 19” rack mount kit (1x Qx chassis)
PHQXK2 Qx 19” rack mount kit (2x Qx chassis)
PHQXK3 Qx Mounting kit – 9.5” rack (1x Qx chassis)
Qx Extended Warranty
PHQX-3YEAR 3 Year Warranty**
PHQX-5YEAR 5 Year Warranty**

** One year warranty included as standard
