2K/3G/HD/SD Rasterizers

Faster fault diagnosis with capture & remote access



Based on the award-winning PHABRIX Sx handheld test & measurement range, the rack-mounted Rx series delivers advanced 2K/3G/HD/SD signal generation, analysis and monitoring for faster compliance testing and fault diagnosis of video and audio. Video capture speeds intermittent fault finding, and remote access offers monitoring from any location.

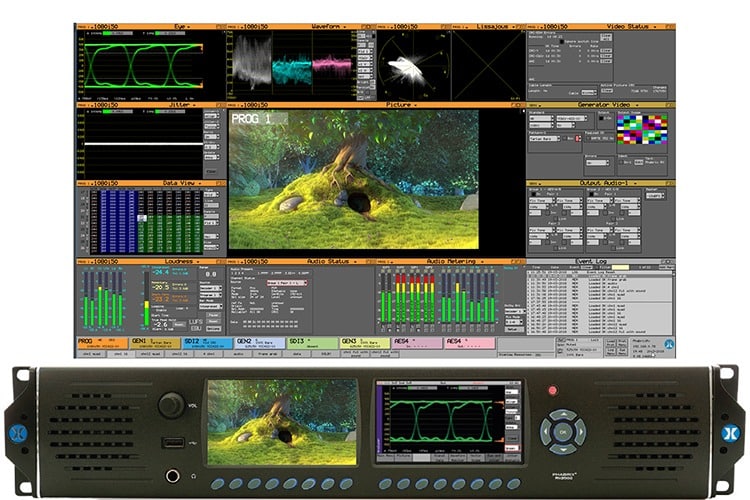

Rx 2000

4 channel analyzer/generator (2K/3G/HD/SD) with monitoring via dual built-in screens & audio speakers

The top of the range Rx 2000 offers up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and can also provide signal generation. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing via an external display. Monitoring of the instruments and video can also be performed using dual built-in screens and audio speakers.

The Rx 2000 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis. Up to 3 more channels of video analysis/generation, or up to 12x AES audio analysis/generation, can be added with expansion modules.

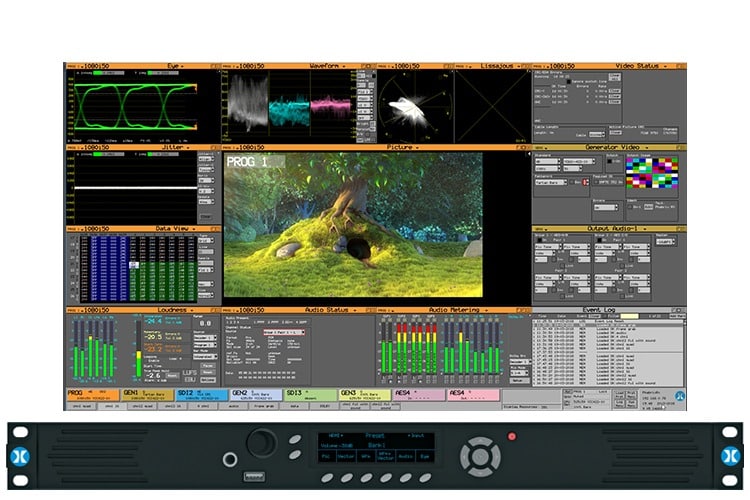

Rx 1000

Compact 4 channel analyzer/generator (2K/3G/HD/SD) & monitoring rasterizer

The advanced Rx 1000 is a compact, 1RU version of the Rx 2000 without the dual built-in monitoring displays or speakers. It provides up to 4 channels of 2K/3G/HD/SD-SDI video/audio analysis and monitoring (dual inputs per analyzer), and also provides signal generation. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing via an external monitor.

The Rx 1000 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis. Up to 3 more channels of video analysis/generation, or up to 12x AES audio analysis/generation, can be added with expansion modules.

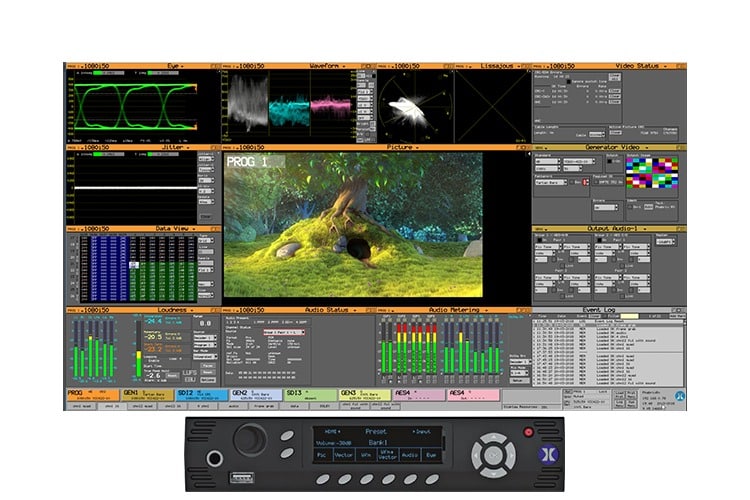

Rx 500

2 channel analyzer/generator (2K/3G/HD/SD) & monitoring rasterizer

Ideal for Quality Control applications, the Rx 500 is a single/dual channel 2K/3G/HD/SD-SDI video/audio analyzer and monitoring solution in a very compact 1/2 RU frame (dual inputs per analyser). It supports dual inputs per analyzer and can also provide signal generation for video and audio. Up to 16 instruments can be presented simultaneously for video analysis and eye/jitter testing.

The Rx 500 starter configuration includes a single channel video analyzer, with optional signal generation and eye/jitter analysis.
