Rx Series

Advanced Rasterizers for 2K/3G/HD/SD Signal Generation, Analysis & Monitoring

Faster fault diagnosis, ultra-flexible monitoring

3x the choice

Based on the award-winning Sx portable test & measurement range, the rackmounted Rx series of rasterizers delivers advanced 2K/3G/HD/SD signal
generation, analysis and monitoring for faster compliance testing and fault diagnosis of both video and audio signals.

Up to 16 Simultaneous Instruments

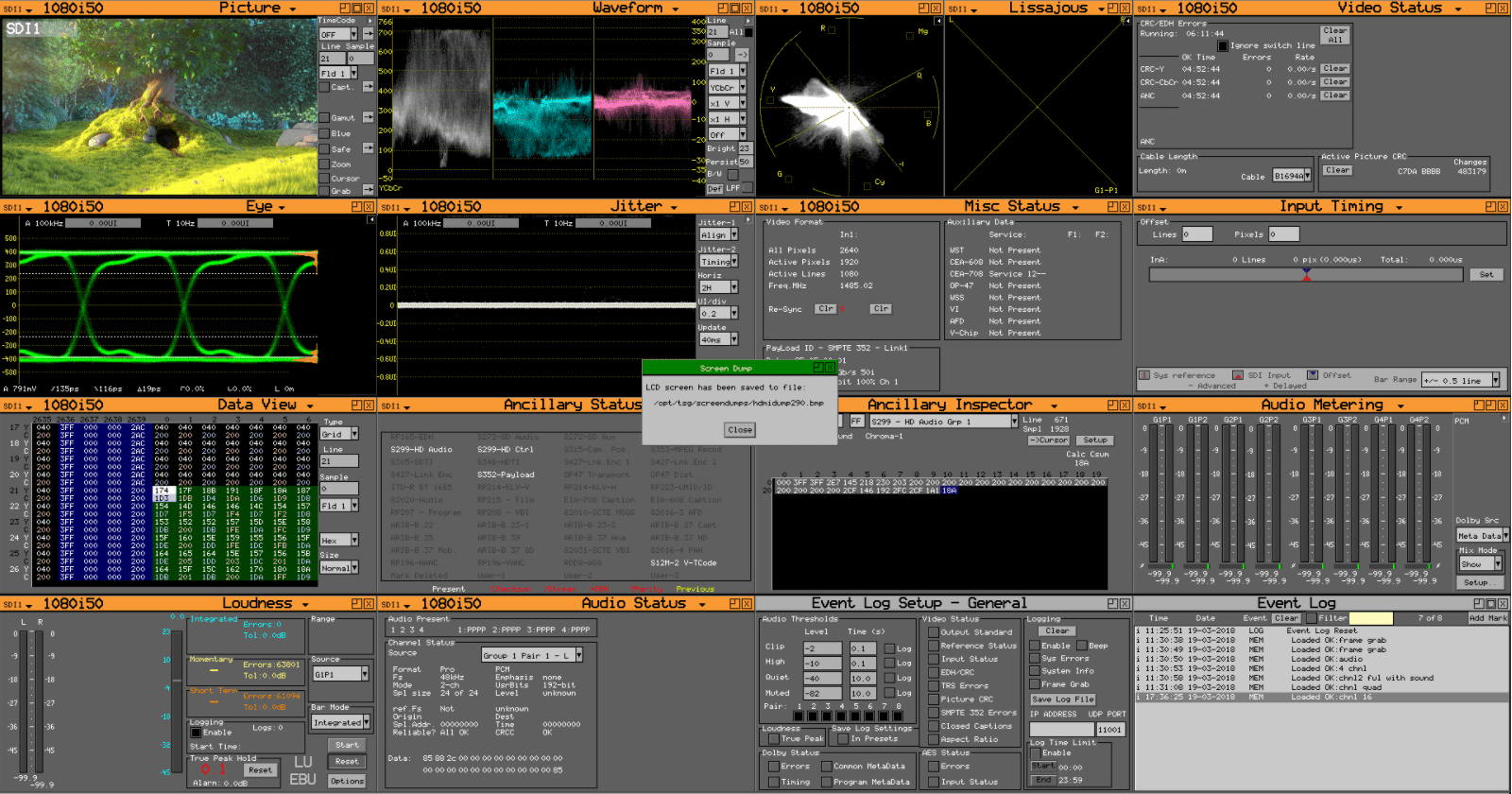

Monitoring workflows are optimized with ultra-flexible, user-defined instrument display layouts. Up to 16 instruments can be presented simultaneously, at sizes ranging from full screen down to 1/16 screen. In multi-channel environments, channel identification is simplified with a dedicated window color per channel.



Monitoring configurations can be built to suit individual operators and key applications, with rapid recall of layout presets for fast turnaround of screen layouts eg. Video or Audio focus. Up to 99 presets are available to suit even the largest facility.

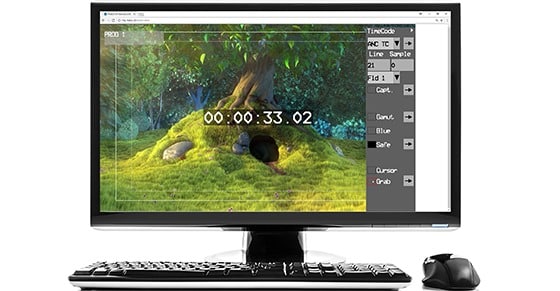

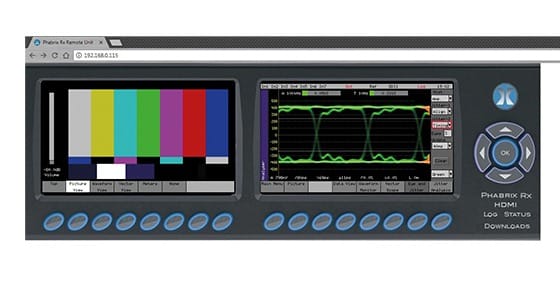

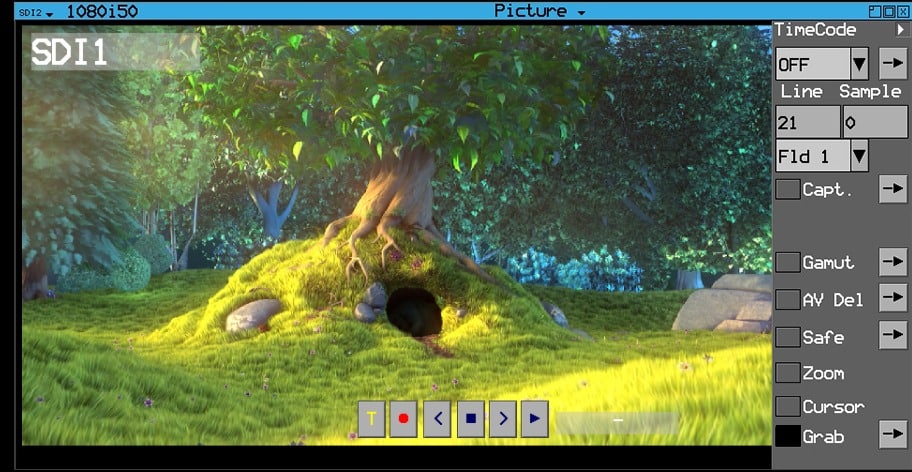

To speed fault finding, the Rx Series offers video and audio capture to help diagnose problems. The capture can be triggered automatically when faults are identified by the analyzer, according to user-defined criteria. Monitor and analyze video via a web browser from any location.

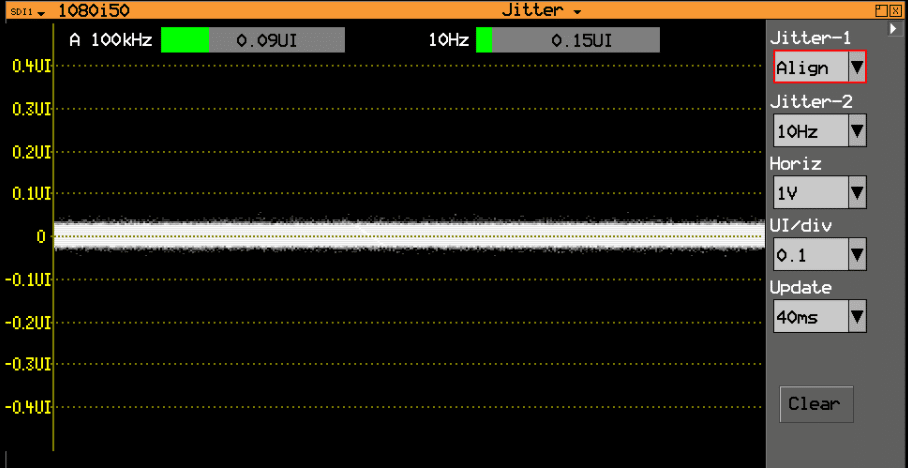

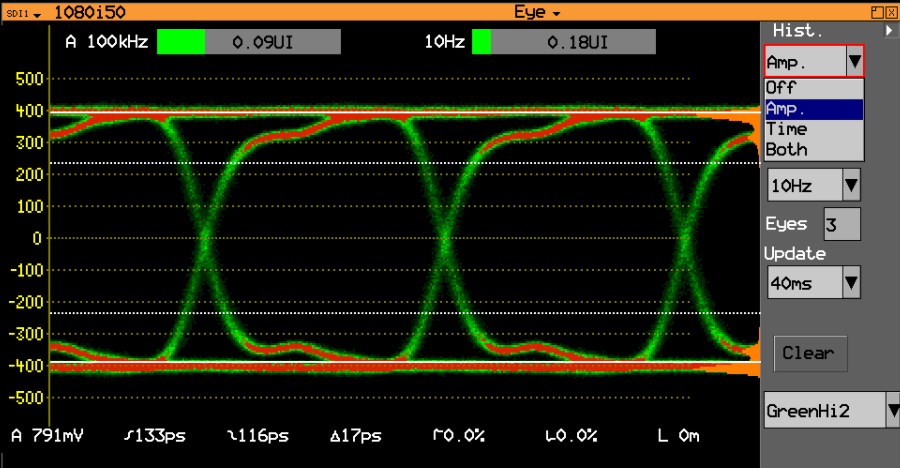

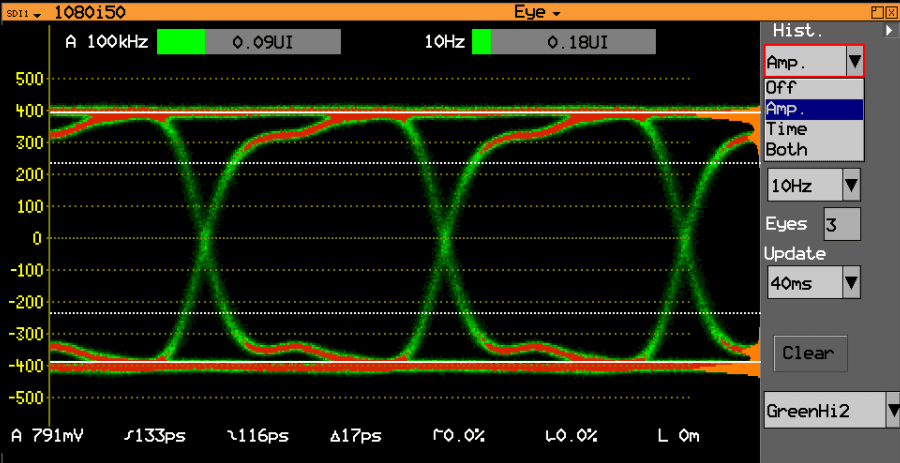

Advanced diagnostic tools include up to four simultaneous Real-Time Eye™ and Jitter physical layer analysis instruments plus closed caption, loudness and Dolby® monitoring. This makes the Rx Series ideal for OB trucks, broadcast facilities and video technology manufacturers.


AV Delay measures the audio-video delay through a broadcast workflow. Features include; a realtime update of the differential delay between the video and up to 8 audio channel pairs, plus support for EBU Tech 3305 and LAWO V_line AV Sync test patterns.

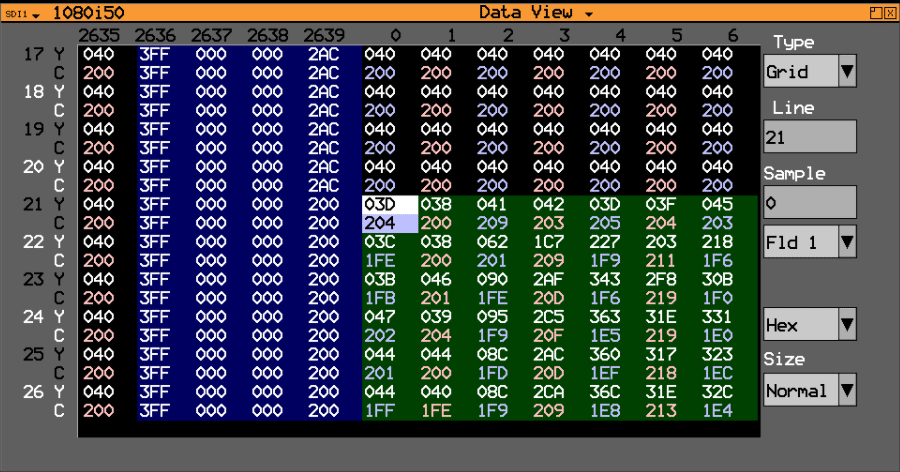

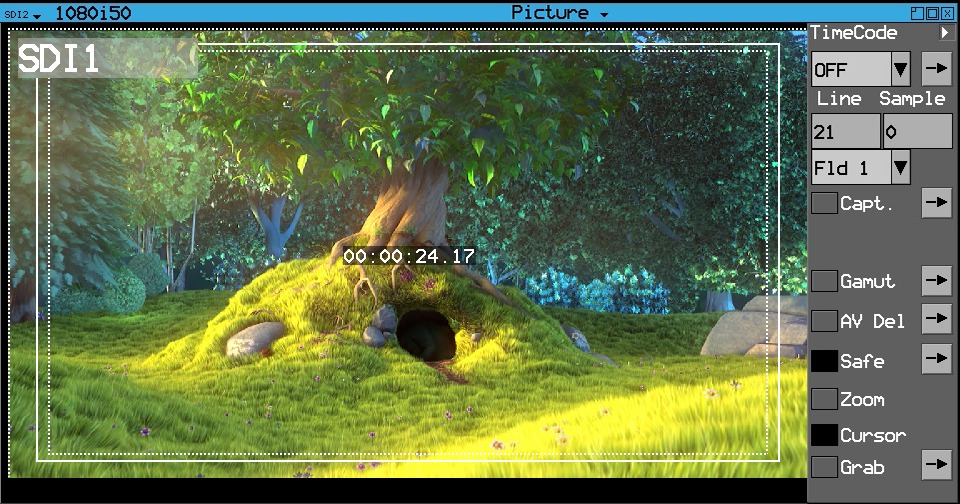

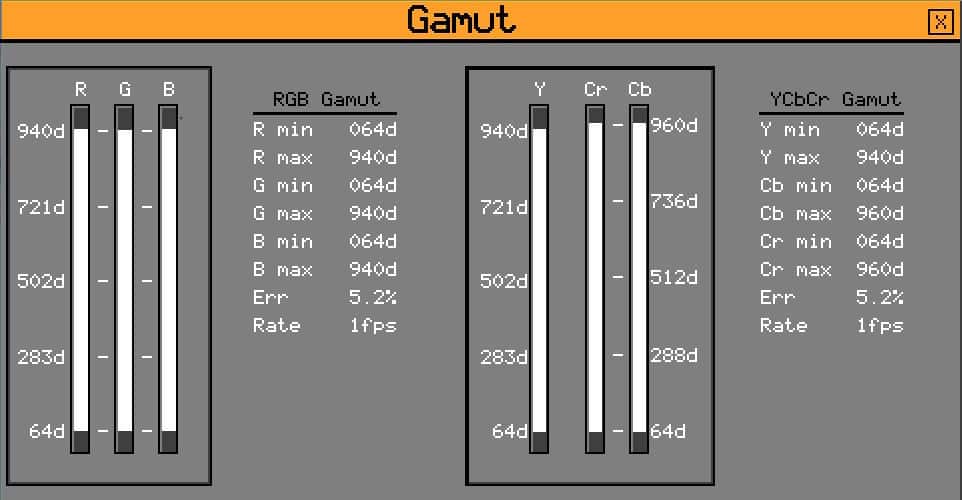

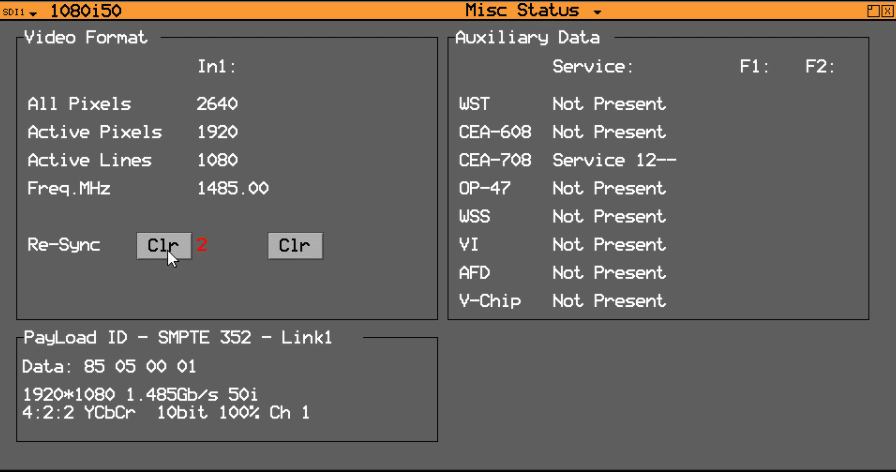

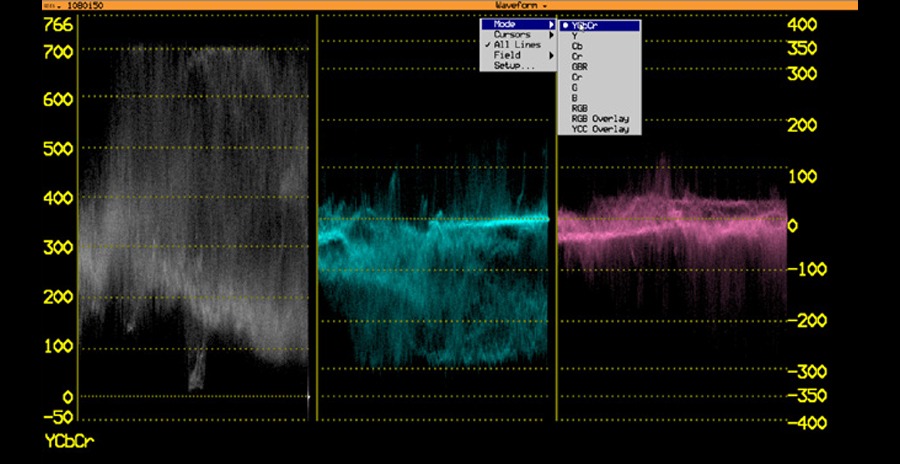

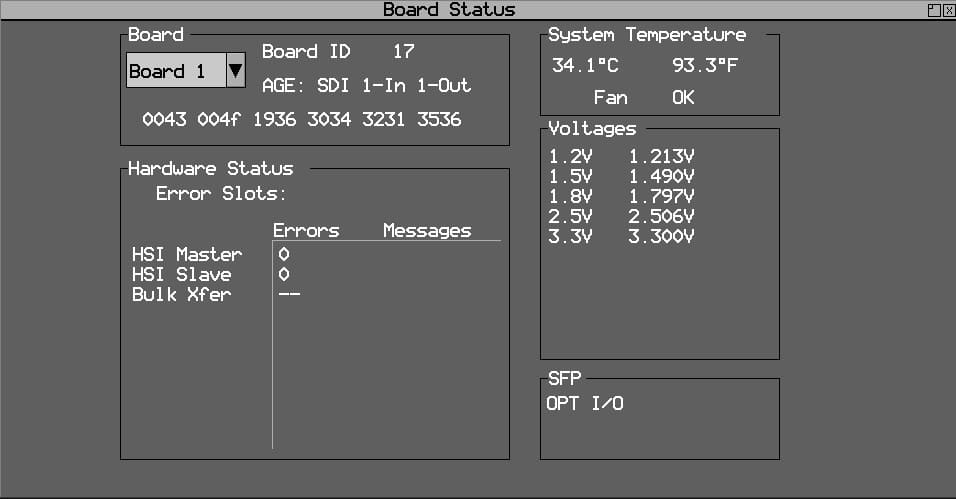

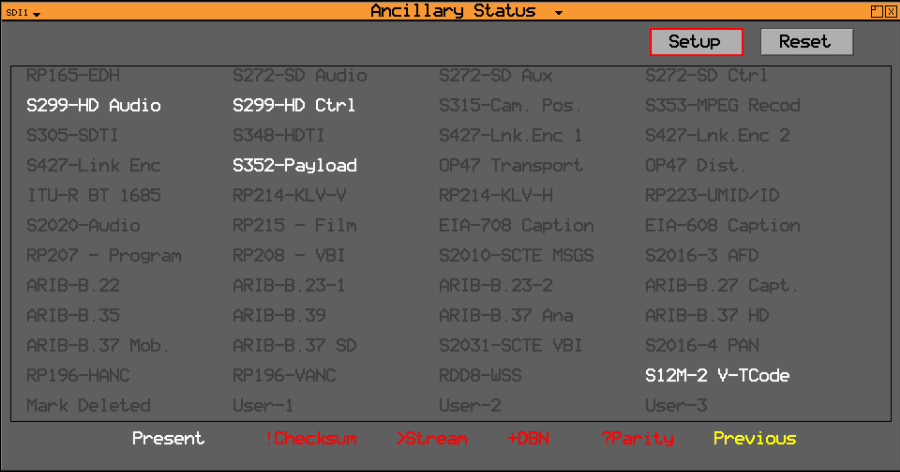

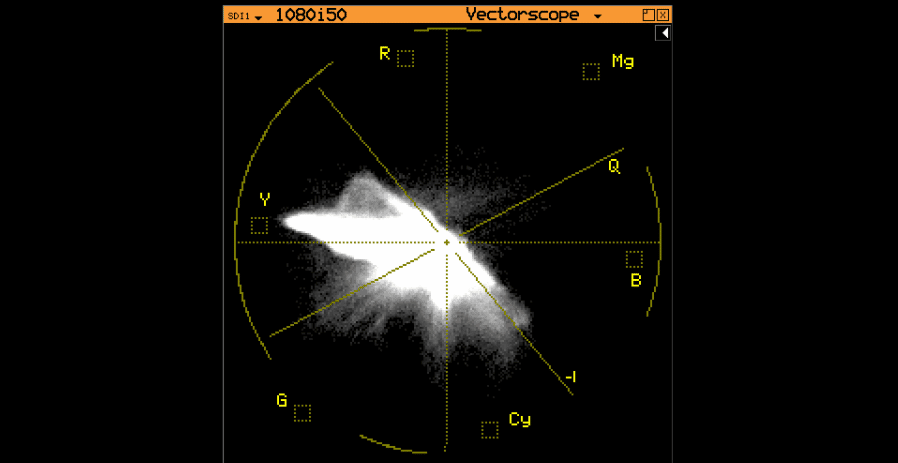

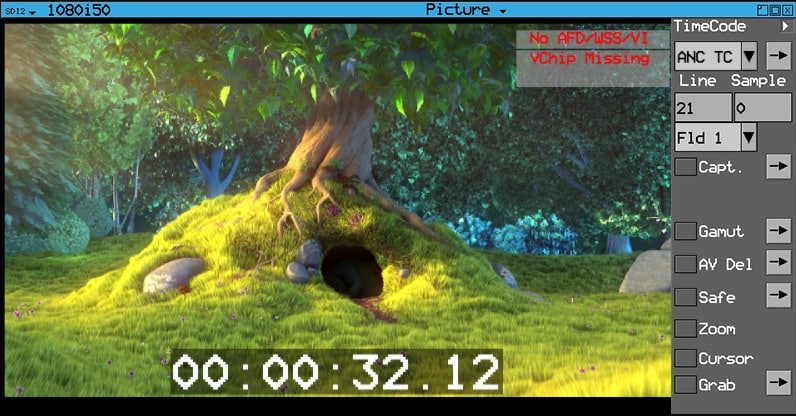

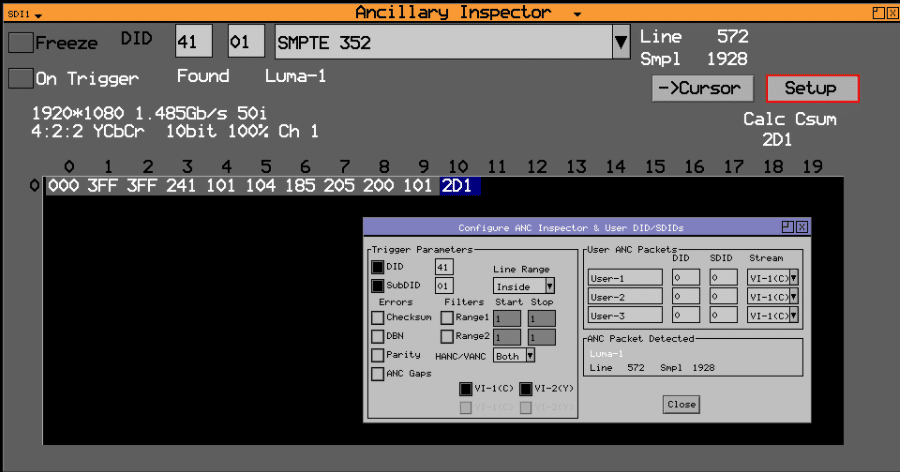

With simultaneous signal generation and analysis, the Rx toolset includes a multi-format waveform, vectorscope and video display, plus an ANC toolset offers ANC, Misc, Video and Board status. Data view and VANC/ANC inspector are available as optional toolsets.

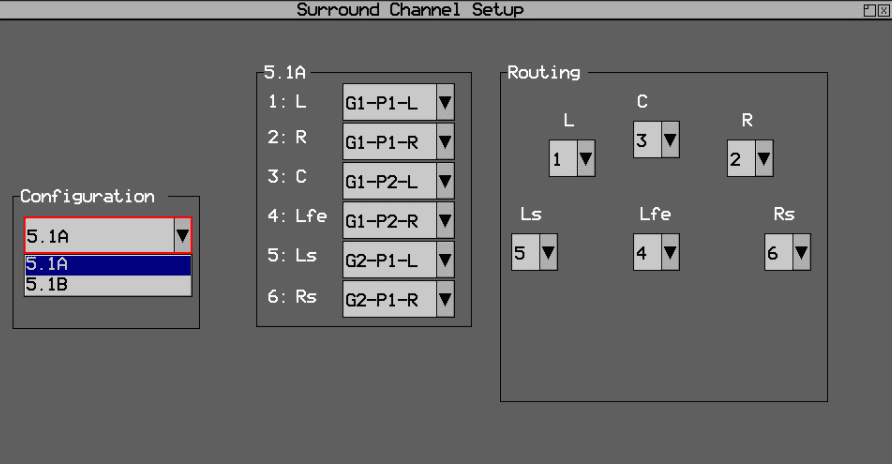

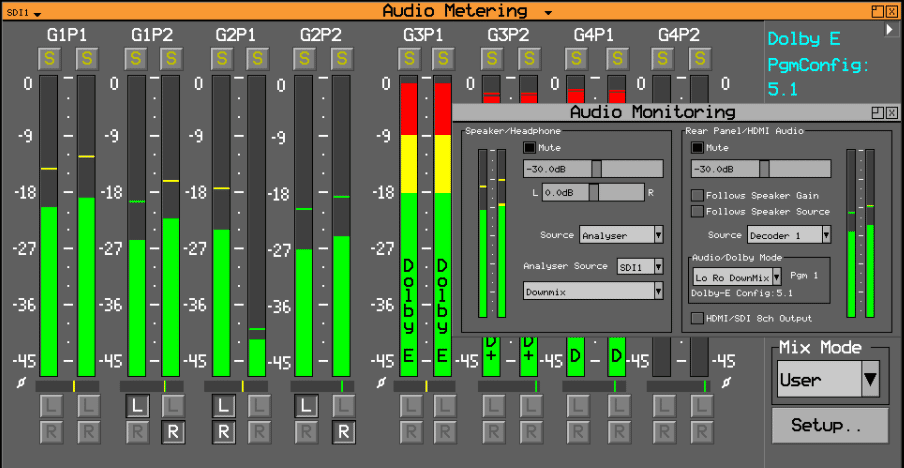

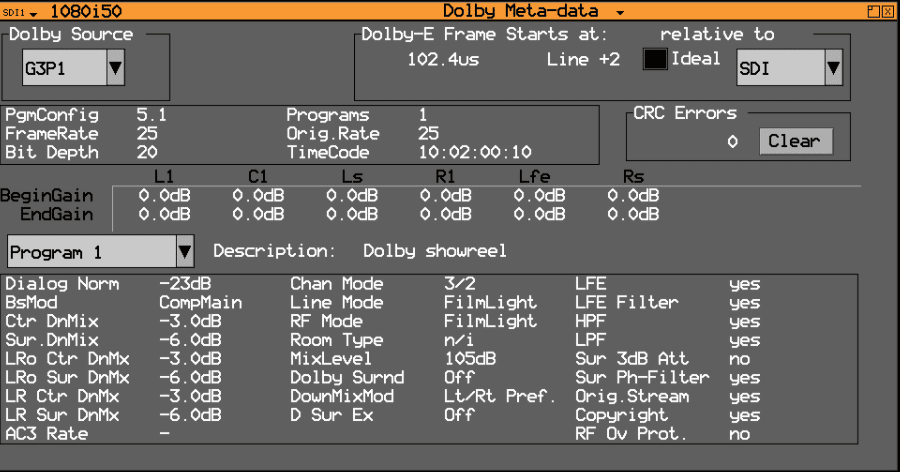

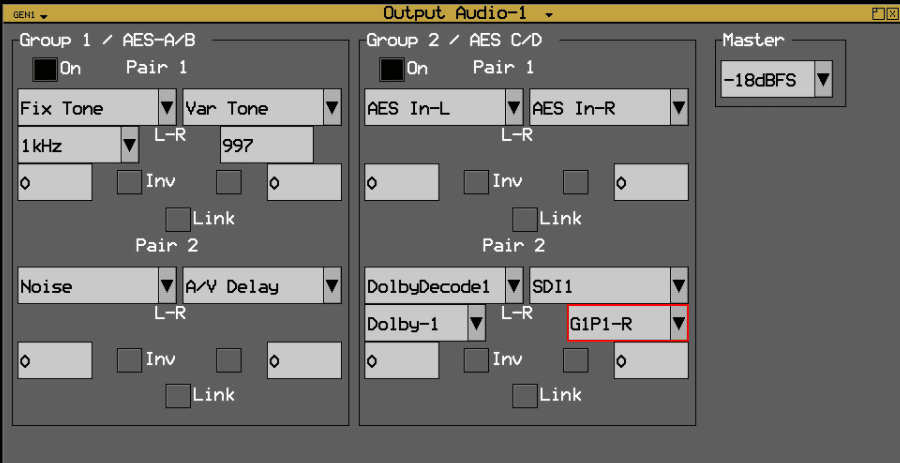

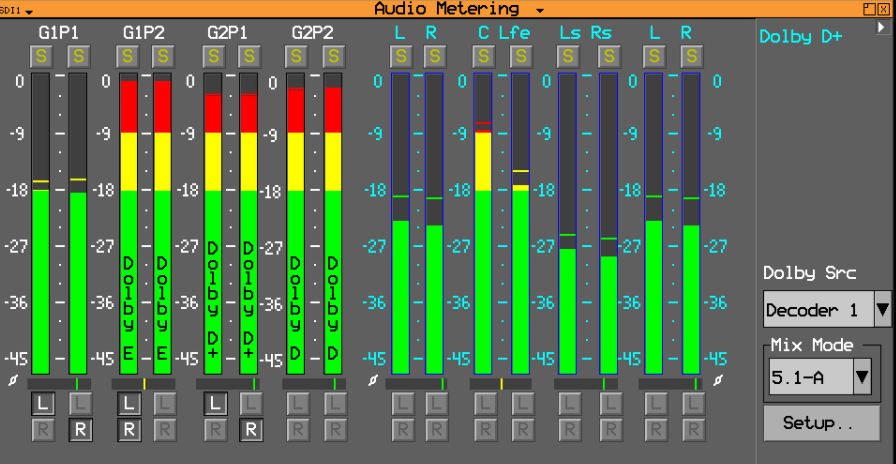

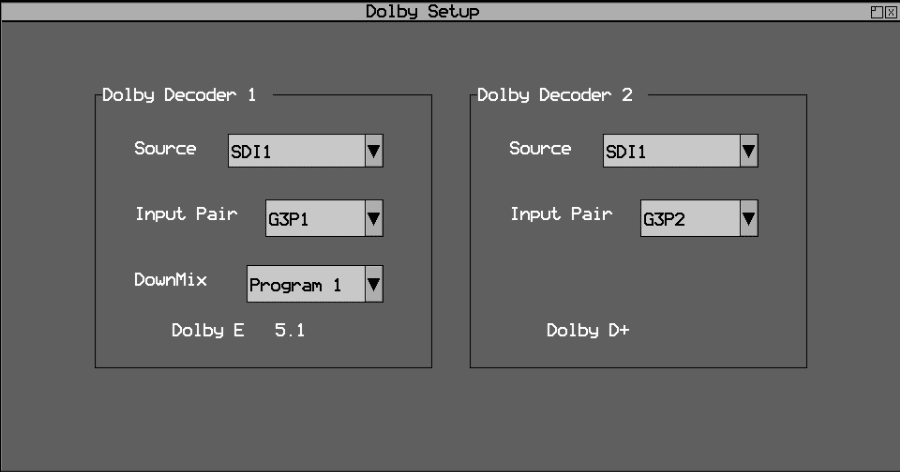

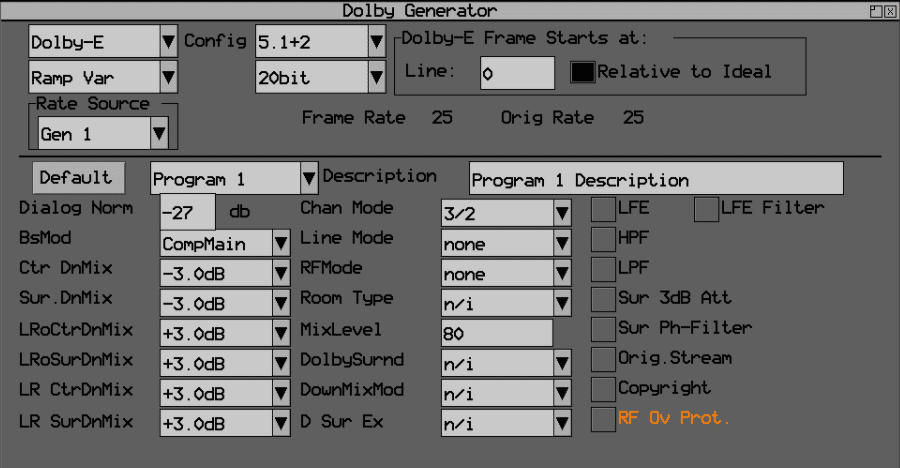

The Rx Series offers metering of up to 16 embedded audio channels as well as bitstream generation and analysis of Dolby DE, DD, DD+ and decoding of metadata for Dolby DE, DD and DD+. Loudness and downstream monitoring are also included.

In Action:

Cingularity selects PHABRIX Rx for power and flexibility on sports broadcasts

PHABRIX, a worldwide leader in test and measurement solutions, has supplied three Sx handheld 3G/HD/SD video/audio monitoring instruments and an Rx 2000 rasterizer to Cingularity, the media network provider, for monitoring on location at two upcoming sporting events.


Eye & Jitter Toolset

Optional Toolset

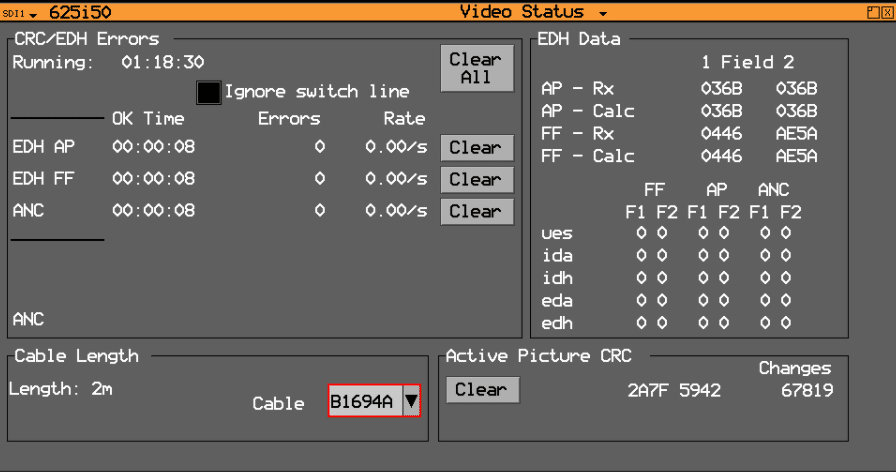

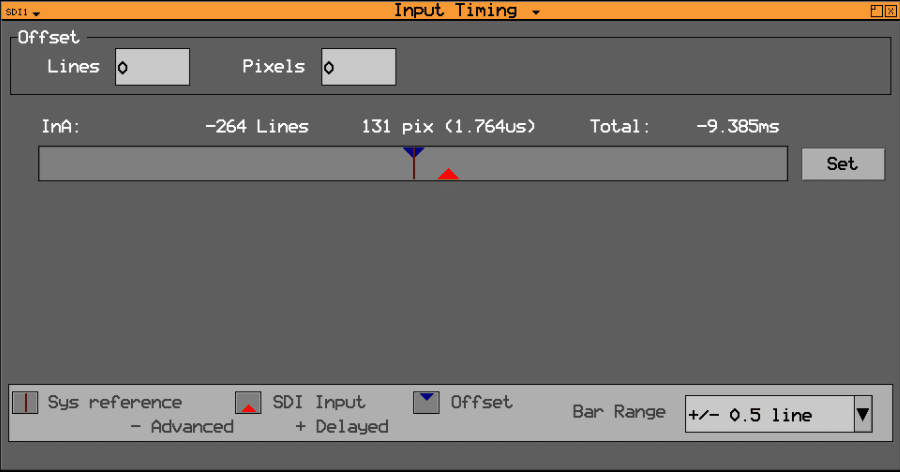

Video Toolset

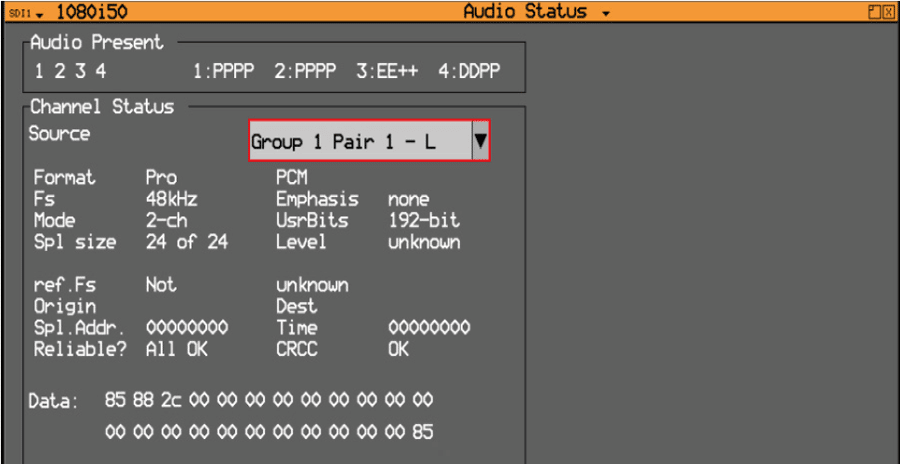

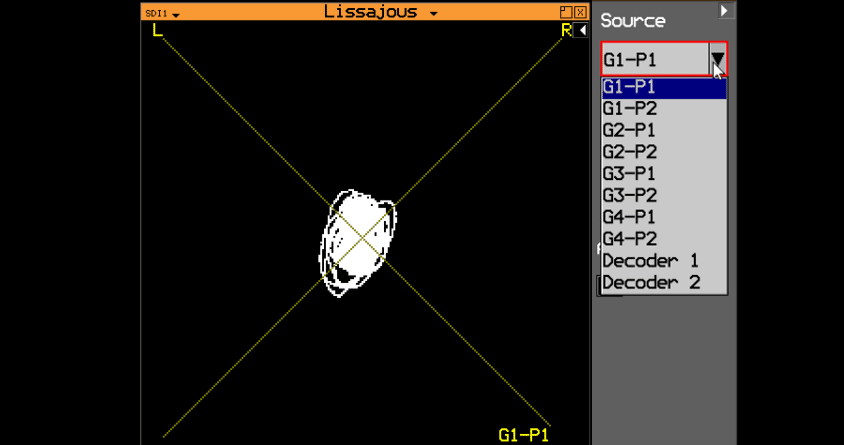

Audio Toolset

ANC Toolset

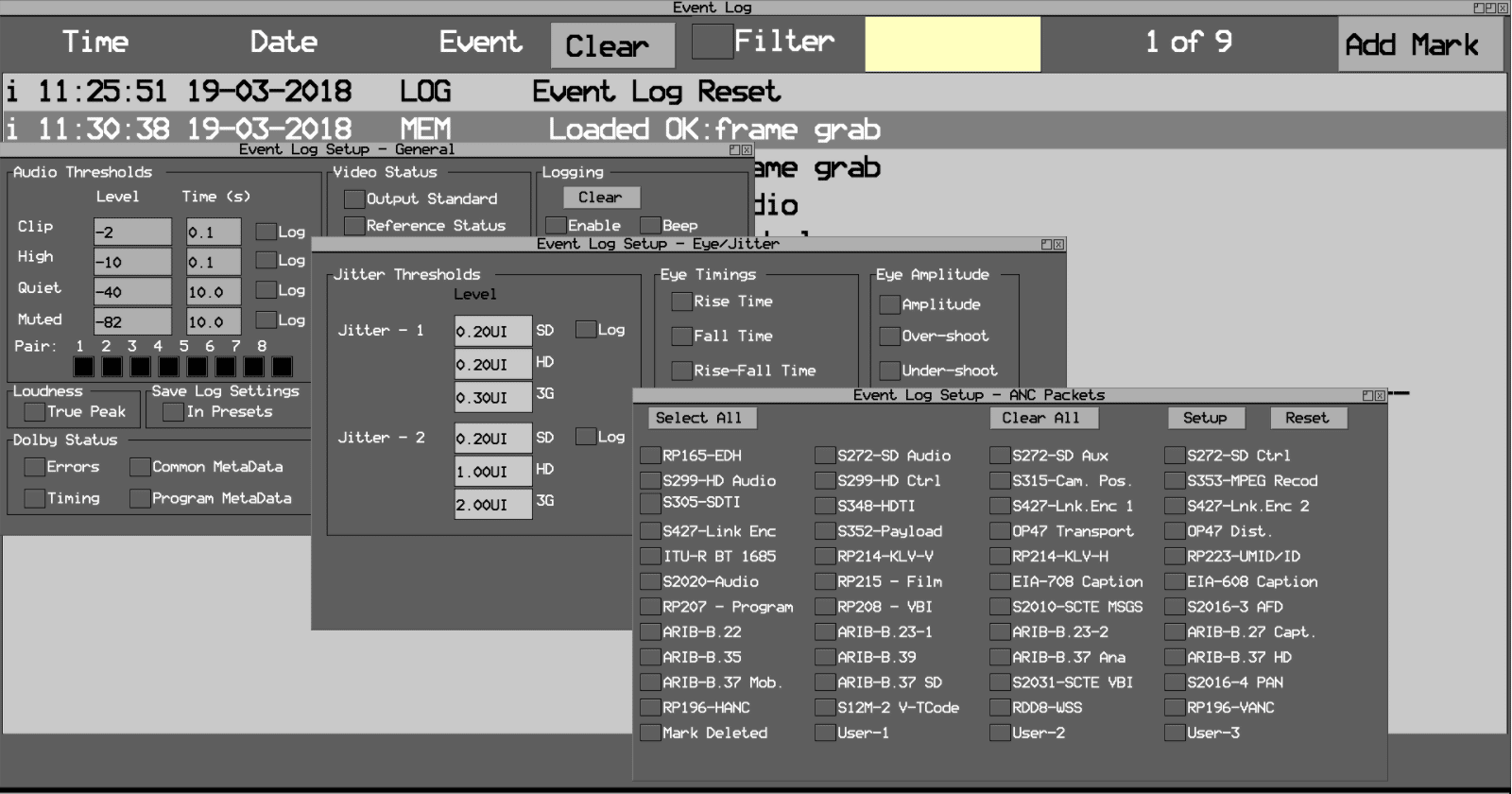

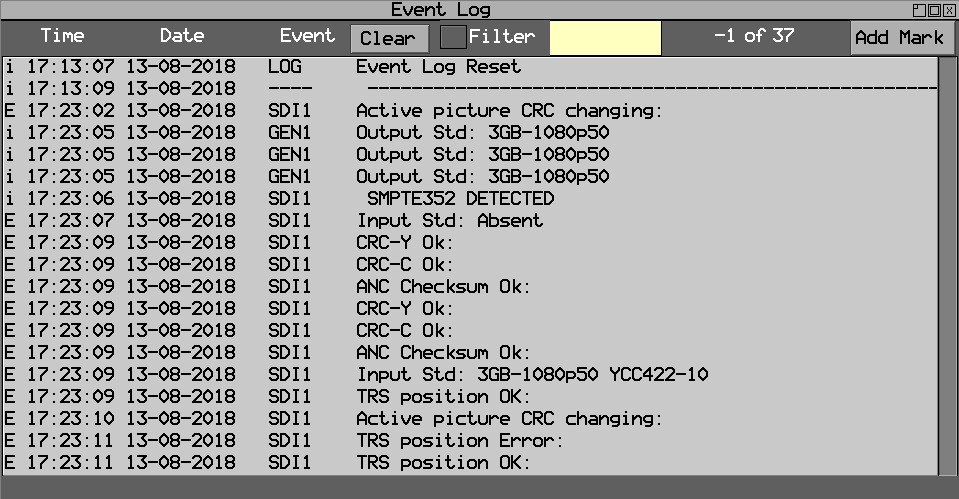

Fault Finding & Logging

Control Toolset

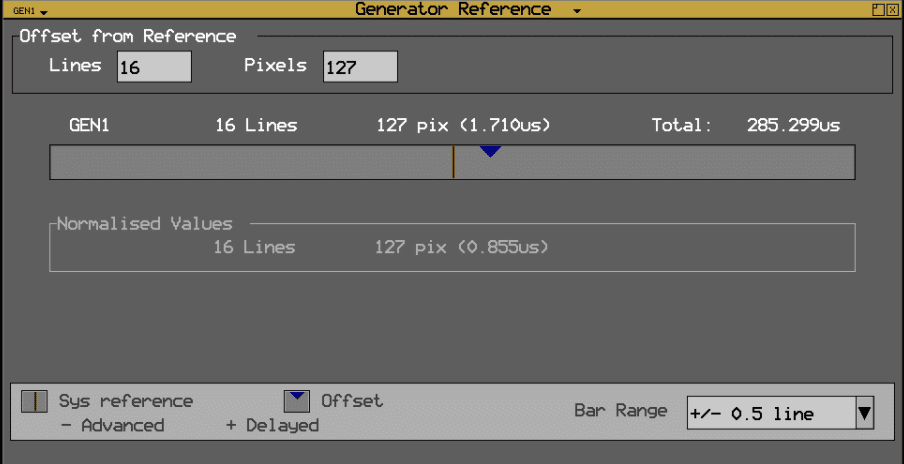

Generator Toolset

Optional Toolset

Get a live demo of our products

See our products in action and find out how they can work for your organisation


Description Rx
Rx 1000 Rx 2000
SD-SDI, HD-SDI as standard
Optional 3G-SDI (license) O O O
Dual 16:9, 24 bit, 4.3” TFT, 480 x 272 pixels N/A N/A
OLED display N/A
Front panel backlit navigation keypad
Front panel volume/gain control
Front panel headphone connector 6.3mm (1/4 inch) Stereo jack
Front panel USB 2.0 host port type A socket + 2 rear panel USB 2.0 ports
Internal loudspeaker Beeper Beeper 2x7W wide range
I/O Module slots (each supporting a range of audio/video modules) 2 4 4
Internal Dual Dolby® decoder module slot (option) 1 1 1
HDMI instrument output, 1920 x 1080, 4:4:4 RGB, Type A
SDI instrument output, 1920 x 1080, 4:2:2 YUV, BNC 75 Ohm
Basic SDI generator included as standard (replaces instrument output)
8 channel 48kHz PCM audio on HDMI and SDI Instrument outputs
Reference/VITC input, passive loop through, BNC 75 Ohm compensated
AES input AES 3-ID, SMPTE 276M-1995, 75 Ohm BNC
LTC input (via 26 pin high density ‘D’ Type socket)


Product Rx
8x GPI I/O (via 26 pin high density ‘D’ Type socket)
Stereo analog audio output, (via 26 pin high density ‘D’ Type socket)
Calibrated stereo balanced analog audio output (option module)
Ethernet remote control via browser, RJ45 connector, 10/100Base-T

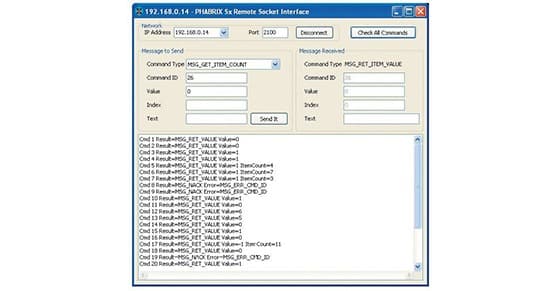

IP sockets based remote control as standard
FPGA firmware/software upgrade via Ethernet/USB
Viewing angle tilt mechanism N/A N/A
Desktop mounting kit N/A
19” Rack-mount kit 1U (opt) 1U (stnd) 2U (stnd)
10.5”/9.5” Rack-mount O N/A N/A
Whisper quiet temp controlled fan 1 x 40mm internal 2 x 40mm external 1 x 60mm external
Power consumption (variable on modules inserted) 24W typical 40W max 24W typical 70W max 27W typical 80W max
4 Pin XLR power connector, 12V nominal (9V-18V)
AC Power adaptor (incl), 90-264VAC, 120W
Dimensions (w x h x d) excl ears & projections 210x44x 170mm 440x44x 170mm 440x88x 150mm
Weight (chassis with CPU module and 1x AG option module fitted) 1.3kg 2.0kg 2.3kg
1 year manufacturers warranty



Choice of starter configurations
(All include Closed Captions, Loudness Monitoring and Audio Meters)
PHRX2000A Rx 2000 (2RU) with 1 x channel Analyzer module
PHRX2000AE Rx 2000 (2RU) with 1 x channel Analyzer module plus Eye/Jitter analysis
PHRX2000AG Rx 2000 (2RU) with 1 x channel Analyzer/ Generator module
PHRX2000AGE Rx 2000 (2RU) with 1 x channel Analyzer/ Generator module plus Eye/Jitter analysis
PHRX1000A Rx 1000 (1RU) with 1 x channel analyzer module
PHRX1000AE Rx 1000 (1RU) with 1 x channel Analyzer module plus Eye/Jitter analysis
PHRX1000AG Rx 1000 (1RU) with 1 x channel Analyzer/ Generator module
PHRX1000AGE Rx 1000 (1RU) with 1 x channel Analyzer/ Generator module plus Eye/Jitter analysis
PHRX500A Rx 500 (1/2RU) with 1 x channel Analyzer module
PHRX500AE Rx 500 (1/2 1RU) with 1 x channel Analyzer module plus Eye/Jitter analysis
PHRX500AG Rx 500 (1/2 1RU) with 1 x channel Analyzer/ Generator module
PHRX500AGE Rx 500 (1/2 1RU) with 1 x channel Analyzer/ Generator module plus Eye/Jitter analysis
Channel #2 / AES expansion module
(Add up to 3 per Rx 2000 and Rx 1000, and add 1 per Rx 500)
PHRXM-A 1 x Analyzer expansion module
PHRXM-AE 1 x Analyzer expansion module plus Eye/Jitter analysis
(Only available on Rx 2000 & Rx 1000)
PHRXM-AG 1x Analyzer/Generator expansion module
PHRXM-AGE 1 x Analyzer/Generator expansion module plus Eye/Jitter analysis
(Only available on Rx 2000 & Rx 1000)
PHRXM-4AES 4 x AES audio analyzer/generator with AES routing expansion module


PHRXO-3G 3G plus advanced formats
(422/444, YUV/RGB, 10/12-bit) + 2K-SDI
PHRXM-DOLBY Dual Dolby® decode, bit stream metadata analyzer and framing indication for Dolby DE, DD and D+ (Includes PHRXO-BDA license)
PHRXO-BDA Dolby® Bitstream analyzer
(1 license supports up to 4 input modules)
PHRXO-BDG Dolby® Bitstream generator
(Requires generator or AES module)
PHRXO-DATA SDI data view/ANC packet analyzer
PHRXO-AVD AV Delay Analysis
PHRXM-ANA Analog audio line level output converter
PHSFP-RT30-1310 SFP optical transceiver 3G/HD/SD-SDI – Tx 1310nm, Rx 1260-1620nm
PHSFP-2R30 SFP optical dual receiver 3G/HD/SD-SDI – Rx 1260nm-1620nm
PHSFP-RT30-1550 SFP optical transceiver 3G/HD/SD-SDI – 50km, Tx 1550nm, Rx 1260-1620nm
PHRXK1 19” rack mount fitting kit for 1 x Rx 500
PHRXK2 19” rack mount fitting kit for 2 x Rx 500
PHRXK3 9.5″ rack mount fitting kit for 1x Rx500 unit
PHRXK5 Desktop Kit with adjustable feet and handles
PHRX-3YEAR 3 Year Warranty*
PHRX-5YEAR 5 Year Warranty*
*One year warranty included as standard
