Handheld/Portable Instruments
Portable generator/analyzers for hybrid IP/SDI & physical layer testing
The PHABRIX portable test & measurement range offers advanced capabilities including hybrid IP/SDI performance and physical layer testing, along with proven rugged design and exceptional ease of use.

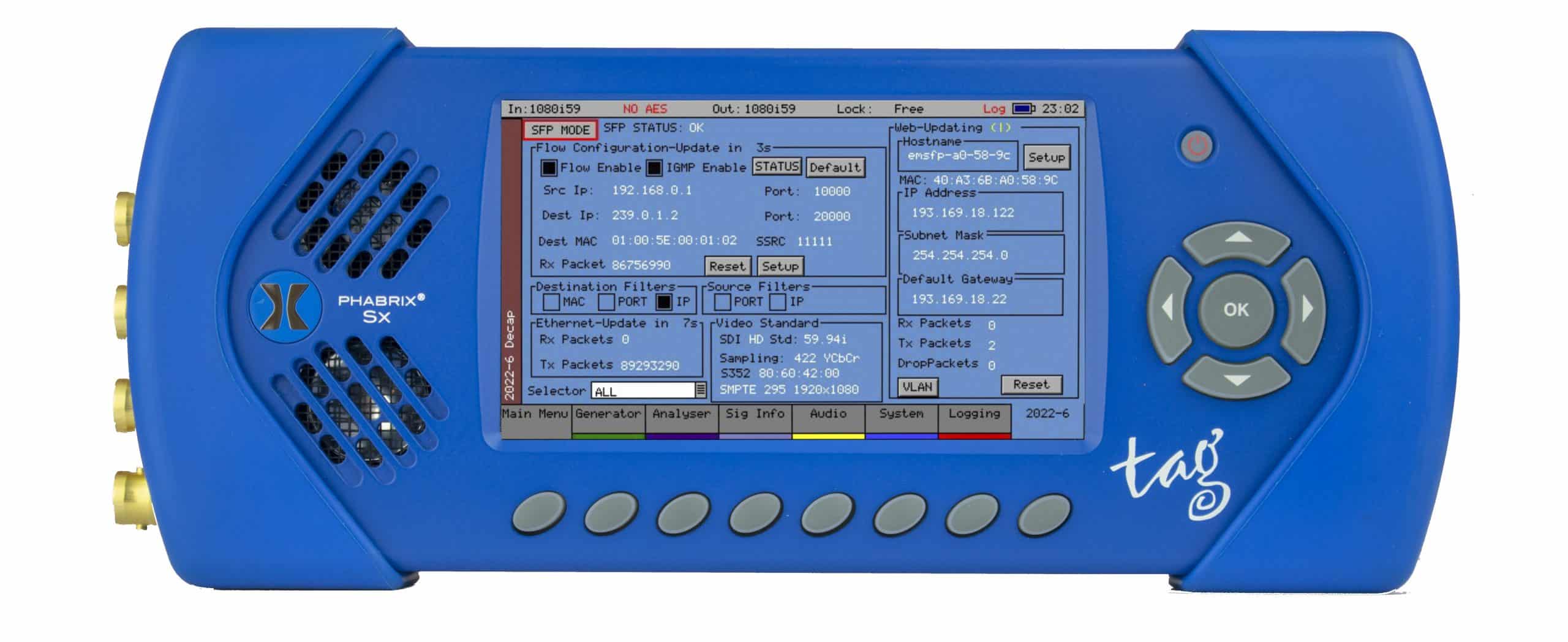

Sx TAG
Portable hybrid IP/SDI + Analog Generation, Analysis & Video/Audio Monitoring
Sx TAG with its SFP, SDI and analog I/O offers incredible versatility in a handheld device. It is ideal for IP, 3G/HD/SD-SDI, optical SDI, HDMI and Analog test & measurement as well as AES eye analysis, for applications demanding true mobility and ease of use.
It provides support for SMPTE ST 2110-20/30/31/40 encapsulation/decapsulation with ST 2059 PTP, SDP and NMOS as well as SMPTE ST 2022-6 encapsulation/ decapsulation, using 10GE IP SFP+ modules developed by Embrionix.
Useful hybrid IP/SDI features include SDI to IP and IP to SDI gateways for both ST 2110-20/30/31/40 and ST 2022-6 as well as the ability to generate an analog reference ouput slaved to the ST 2059 PTP or 2022-6 IP input.
SxE
Portable 3G/HD/SD Generation, Analysis & Monitoring with Advanced Physical Layer Analysis
With advanced SDI physical layer analysis (Eye & Jitter), the SxE is ideal for applications such as video technology manufacturing and live production.
The instant, RTEโข (Real-Time Eye) technology speeds physical layer testing, and delivers automated measurements and logging for key parameters such as: rise time, fall time, delta, overshoot, undershoot and cable length. The Jitter analysis instrument enables an engineer to quickly analyze the nature of jitter present using a graph of jitter versus time.
Other key capabilities include Dolbyยฎ E, Dolbyยฎ Digital and Dolbyยฎ Digital Plus bitstream analysis, as well as video status logging, and remote operation over Ethernet.

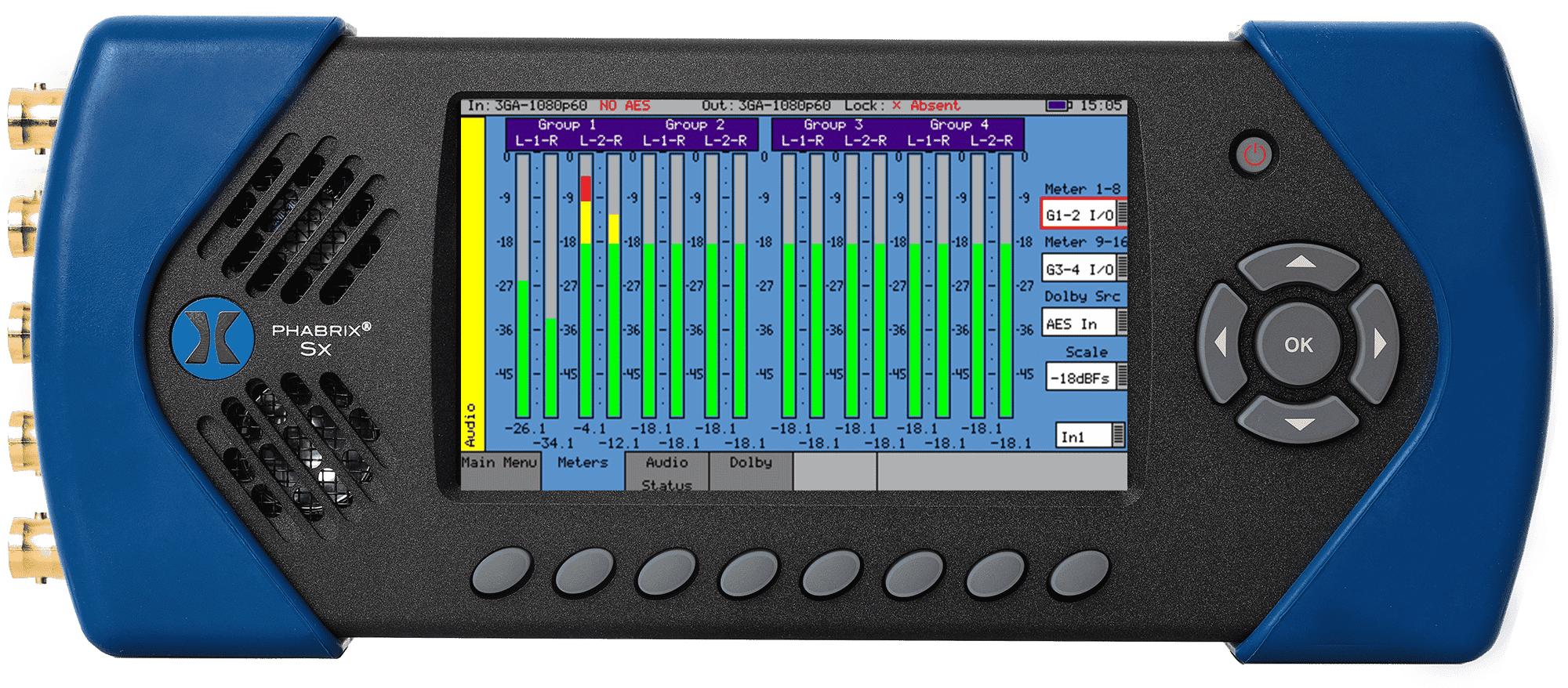

SxA
Portable 3G/HD/SD Generation, Analysis & Video/Audio Monitoring
The SxA offers all of the same advanced signal generation, analysis and monitoring capabilities as the SxE, without the advanced Real-Time SDI physical layer analysis (eye and jitter instruments)
Thereโs support for SMPTE compliance testing with over 350 different formats. An extensive array of video and audio tools includes a signal generator with moving test patterns, a high-performance waveform, and ANC/VANC inspector.
The SxA also offers 16 channel audio generation and metering with support for Dolbyยฎ E, Dolbyยฎ Digital and Dolbyยฎ Digital metadata and bitstream analysis.
SxD
Portable dual-link 3G/HD/SD-SDI Generation, Analysis & Video/Audio Monitoring
The SxD is a dual-link 3G/HD/SD-SDI version of the SxA which is designed for video technology manufacturing and production applications. It has two SDI inputs, two SDI outputs and no AES input or outputs.
It offers support of multiple advanced video standards up to a combined maximum data rate of 3Gbits across the two SDI links, including 422/444, YUV/RGB, 10/12 bit and SMPTE 428-9 D-Cinema/SMPTE ST 2048-2:2011 formats.

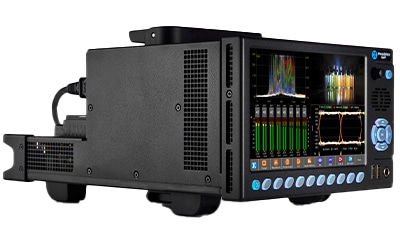

QxP
Portable Waveform Monitor
25G ST 2110 & 12G-SDI with Battery Power
PHABRIX is pleased to present its first example of a traditional โWaveform Monitorโ โ but with a twist. Inheriting all of the class leading features and flexibility of the QxL Rasterizer the QxP features an integral 3U multitouch LCD screen and an integral V-Mount or G-Mount battery plate, integral mains PSU and 12v external DC input. You now have 12G SDI and 25G ST 2110 compliance monitoring in a portable form factor using industry standard Camera Batteries*.
With its class-leading Waveforms, the QxP is equally at home on-set in SDR or HDR Productions, Grading, Shading, or QC, MCR, Engineering and R&D environments. The user is free to use the integral screen, or plug in an external HDMI monitor and use the flexible tool layout to view up to 16 instruments simultaneously. A rich set of remote access options including NoVNC and the UI as a 2110-20 flow provides all of the โheadlessโ operational flexibility of a conventional Rasterizer.
*Batteries not included
